Description

Feature

• Up to 290 lbs of ice produced per 24 hours
• Up to 100 lbs of built-in storage capacity (3.3ft3)
• Ice Machine, Self Contain

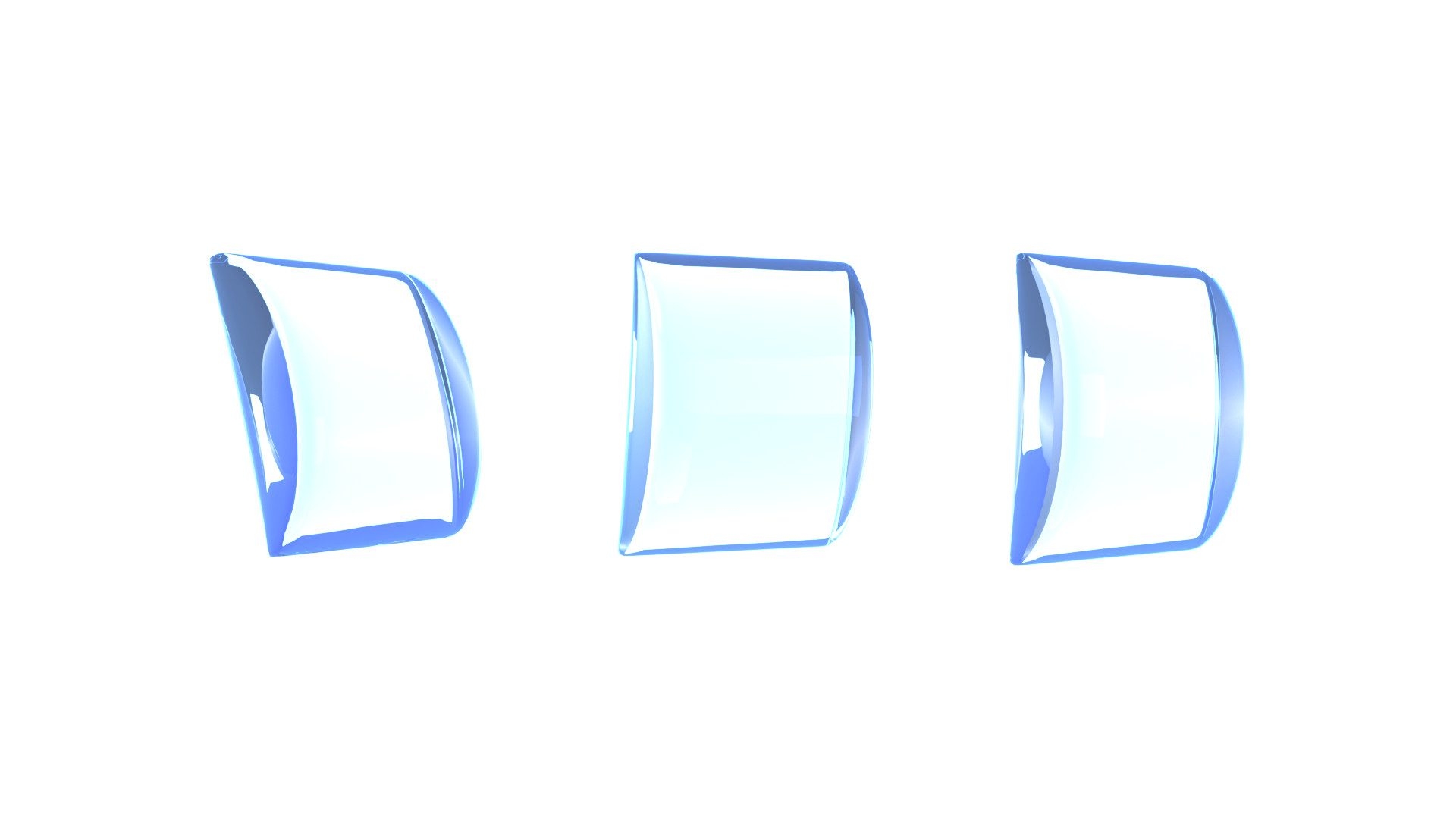

• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Front in, front out airflow
• EverCheck™ alert system
• CycleSaver™ design
• Ice bin opening is ADA compliant
• R-404A refrigerant (13.4 oz. / 380 g)
• Heat Rejection: 4200 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 8.4 amps (15 Amp Max fuse)
• 7.1 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine
• Five Years: Parts & Labor warranty on evaporator
