Description

Feature

• Up to 650 lbs of ice produced per 24 hours
• Mount 2 units side by side for 2x the ice production

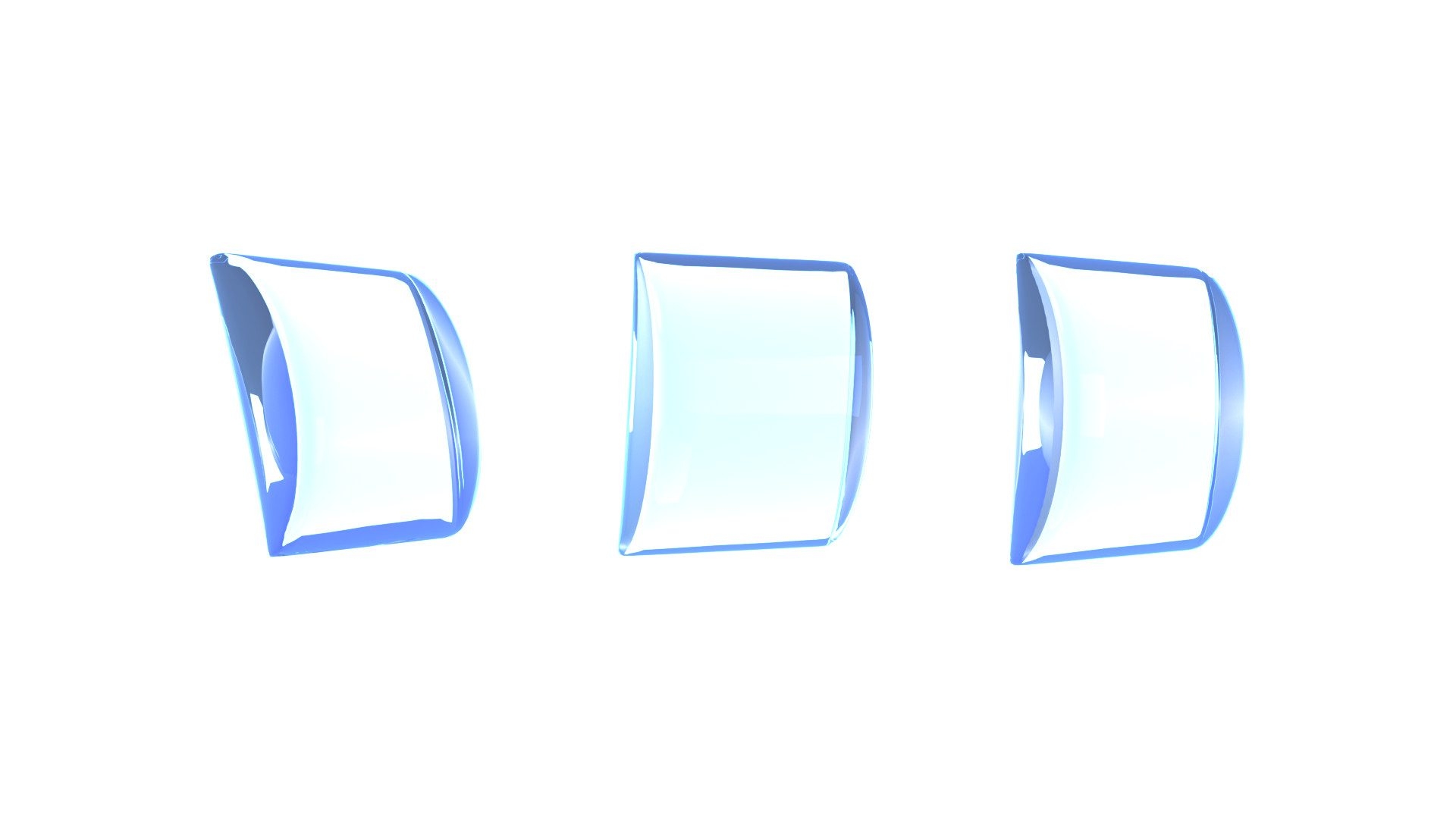

• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Compatible bins & dispensers

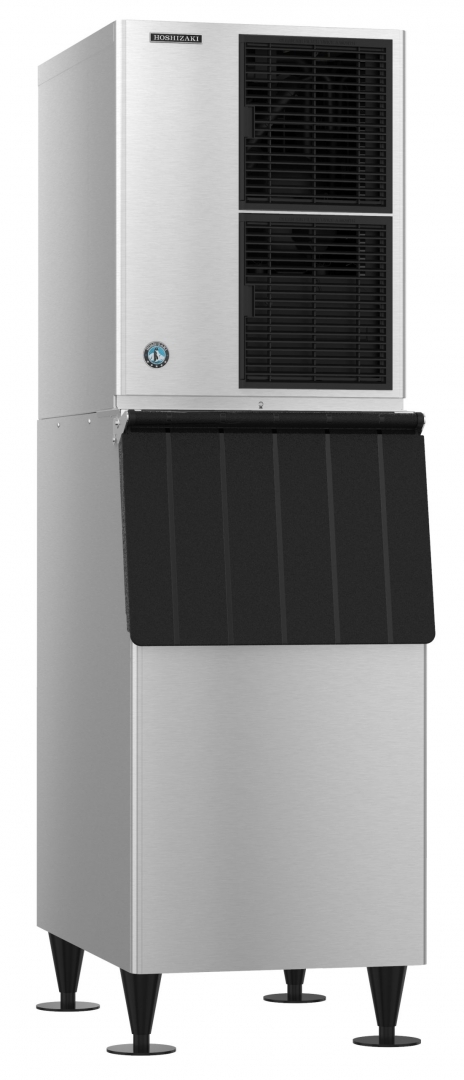

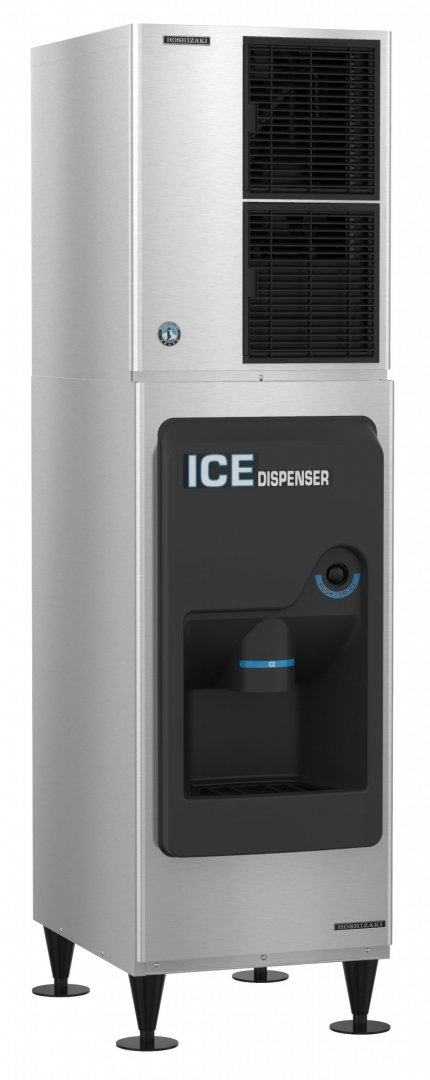

• BIN Sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
• EverCheck™ alert system
• CycleSaver™ design
• R-404A refrigerant (1 lbs. 9.8 oz. / 731 g)
• Heat Rejection: 10400 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 15.2 amps (20 Amp Max fuse)
• 5.12 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine
• Five Years: Parts & Labor warranty on evaporator
