Description

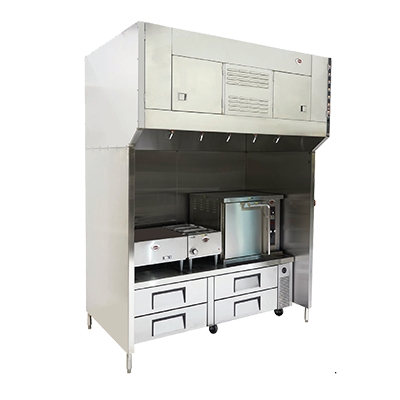

Feature : Ventless Hood

• Cooking Appliances Only electrically heated appliances are acceptable for installation.
• Fire Protection Completely self contained ANSUL R-102 system includes ANSUL tank, nitrogen cartridge, ANSUL sopanifier, piping, heat sensors, ANSUL drops, nozzles, and movable manual pull station.
• Completely self-contained, 4-stage air filtration system reduces emissions below that allowed in NFPA 96 and ANSI UL710B using the EPA 202 test method. Maximum grease emissions are less than .0029 LB/HR/ FT (pounds per hour per foot)
• Completely self-contained fire protection system
• Very quiet with only 68 dBA average
• Interlock system will disable cooking appliances if filters are missing, clogged or in the event of a fire
• Airflow sensors continually monitor airflow for optimizing performance and grease removal
• Illuminated early-warning system to monitor filter replacement
• Four LED lights producing 500 lumens each for improved visibility – light color temperature (cool white) 6000K
• Stainless steel construction for strength, durability and ease of cleaning
• Fits through a 36” wide door opening
• 6” to 8” adjustable legs (adjustable by 2” for leveling)
• Universal systems are movable making them ideal for leased properties
• Available in 208/240V, 1Ø
• Exhaust and Air Flow Exhaust air may be angled (front) or vertical (top). Hoods are shipped for vertical (top) discharge as standard. Angled front discharge is a field convertible option (kit available). Typical airflow through the hood is 1500 CFM. A minimum of 1200 cubic feet of fresh air per minute (200 cubic feet per linear foot of hood) is required into the area to comply with the Universal mechanical code and for the dilution of cooking aromas.
